Jaw crusher - operating principle

The jaw crusher is distinguished primarily by its operating principle. Material is crushed by the pressure between two approaching jaws, one fixed and the other movable and adjustable.

Here we are dealing with a four-stage movement system that ensures maximum efficiency. Between the two approaching jaws (stationary and movable), a pressure is created which acts on the material. Thanks to the optimal distribution of forces, an additional final crushing effect is achieved, which the raw material undergoes as it leaves the crushing chamber. The machining process is based on crushing, bending and shearing, which translates into high efficiency of the machine.

Design of jaw crusher

Along with high pressure goes the use of suitable construction materials. As the jaws and side walls are made of hard-wearing manganese steel, every machine in our catalogue boasts outstanding parameters.

You will find machines in different size variants (power, feed size, production capacity, finished product fraction) in the offer. With a maximum feed size from 125 mm to as much as 950 mm and capacities from 15 to 100 tonnes, we provide you with a great convenience of choice. This makes it possible for you to count on optimal support for your business, regardless of the type and scale of your operation!

An important feature of the jaw crusher is its high output. At the same time, they are reliable devices, which, in addition, require which, in addition, relatively little efforts in terms of operation and preventive maintenance. The relatively low energy consumption is particularly noteworthy. While, the equipment is also easy to operate, especially in relation to its capabilities. This fact is also reflected in the high availability and ease of replacement of spare parts.

Intended use of machinery

Due to its features, the jaw crusher is readily used by the mining industry and aggregate mines, especially as a stone crushing machine. It is just as often used where recycling counts for entrepreneurs – in the demolition work or land reclamation. The most commonly processed materials include:

  • rubble
  • concrete
  • basalt
  • sandstone
  • hard coal
  • stone
  • brick
  • limestone lime
  • granite
  • ceramics

Caution – maximum moisture content of crushed materials

ATTENTION! The jaw crusher is intended for crushing materials with a moisture content of up to 20%! Increasing the moisture content of the rock is reflected in a significant weakening of the rock, resulting in easier and more efficient processing. However, it should be borne in mind that moist material tends to clog the jaws, which can lead to a decrease in efficiency or, in the worst-case scenario, even permanent damage to the jaw crusher. We therefore strongly recommend that you do not exceed the specified parameters.

We encourage you to consult us by phone and email to match the most suitable model to your needs!

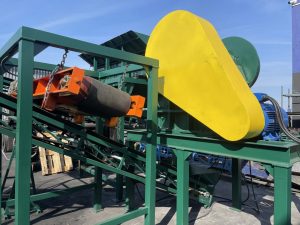

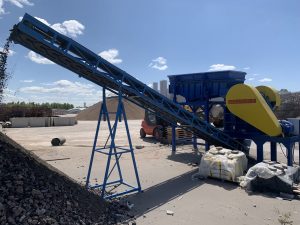

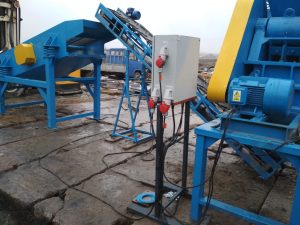

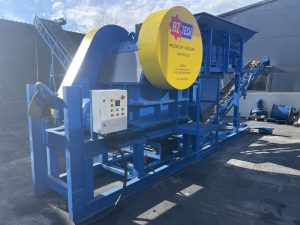

Photo gallery

Available models of jaw crushers

Infeed opening
Finished product
  • KSZ-200x300
    200x300 mm
    1050 mm
    up to 4 t/h
    11 kW
    1050 kg
  • KSZ-250x400
    250x400 mm
    2070 mm
    up to 15 t/h
    18,5 kW
    2300 kg
  • KSZ-300x500
    300x500 mm
    2070 mm
    up to 20 t/h
    22 kW
    4000 kg
  • KSZ-400x600
    400x600 mm
    25100 mm
    up to 50 t/h
    30 kW
    6500 kg
  • KSZ-600x900
    600-900 mm
    35150 mm
    up to 75 t/h
    75 kW
    10 000 kg
  • KSZ-900-1200
    900-1200 mm
    50–250 mm
    up to 120 t/h
    130 kW
    17 000 kg
