Cone crusher - operating principle

Thanks to its design, the cone crusher has many advantages: high reduction ratio, low wear and tear, stable operation of the device, failure-free operation and, above all, accuracy in crushing into individual fractions of the finished product.

In our offer you will find crushers with mechanical or hydraulic adjustment of the cone distance from the jackets, and optionally also with hydraulic cone lifting in the emergency situations.

All cones are cast in resin, which significantly extends the life of the subassembly, and are made of high-grade, hardened steel. The advanced technology of crushing raw material works by means of the pressure between the solid casing and the moving cone The crusher makes it impossible to crush raw materials with an increased moisture content! The machines are intended for crushing hard materials.

Intended use of machinery

Due to its characteristics and operating principle, the cone crusher is ideally suited for the production of aggregates, grit, as well as road and railway infrastructure works (preparation of materials for road construction or embankments). In addition to this, it is also often used in quarrying, especially for materials such as:

  • quartz
  • granite
  • basalt
  • gravel
  • dolomite
  • stone

Available models of cone crushers

In our offer you can find a cone crusher in two versions:

  • KST/M – manual adjustment of cone from jacket
  • KST/H – manual adjustment of jacket from cone

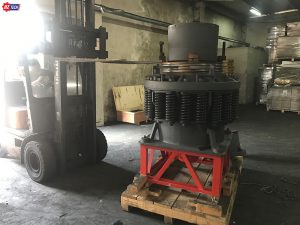

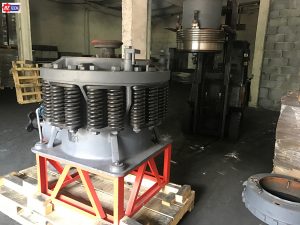

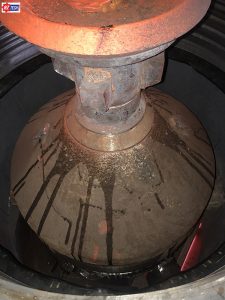

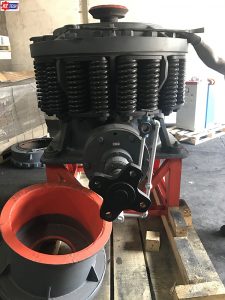

Photo gallery

Available models of cone crushers

Max. feed
Finished product
Cylinder diameter
  • KST-600
    up to 30 mm
    315 mm
    up to 18 t/h
    30 Kw
    600 mm
  • KST/W-600
    up to 60 mm
    1025 mm
    up to 20 t/h
    30 Kw
    600 mm
  • KST-900/1
    up to 115 mm
    1550 mm
    5090 t/h
    55 Kw
    900 mm
  • KST-900/2
    up to 60 mm
    520 mm
    2065 t/h
    55 Kw
    900 mm
  • KST-900/3
    up to 40 mm
    3–13 mm
    1550 t/h
    55 Kw
    900 mm
  • KST-1200
    up to 145 mm
    2050 mm
    110200 t/h
    110 Kw
    1200 mm
